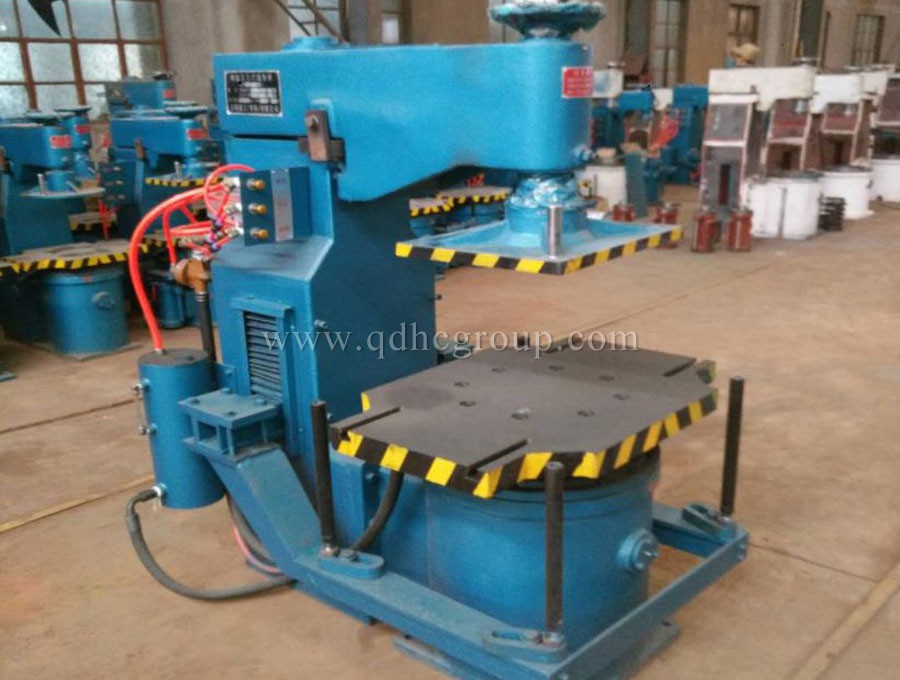

Jolt Squeeze Sand Molding Machine
Molding machine | Z143W | Z145W | Z146W | Z148W | |
Name | Unit | ||||
Foundry flask max dimension | mm | 500*400 | 550*450 | 620*500 | 850*650 |
Worktable dimension | mm | 600*420 | 600*460 | 700*560 | 900*730 |
Compressive process | mm | 140 | 160 | 160 | 220 |
Compressive stress | kgf | 4200 | 6800 | 8300 | 11775 |
Jolting load | kgf | 200 | 300 | 400 | 600 |
Moulding process | mm | 160 | 200 | 220 | 280 |
Productivity | box/hr | 40-60 | 40-60 | 40-60 | 40-60 |
Consumption of free air | m3/box | 0.25 | 0.4 | 0.4 | 0.5 |
Outline size | mm | 820*650*1310 | 900*750*1600 | 1000*800*1700 | 1300*1120*2100 |
